Easy Assembling Shelf Column Steel Slotted Angle Rack Roll Forming Machine
Mainly composed of columns(angle rack roll forming machine) and steel laminates(shelf panel bending machine) Suitable for manual access to lighter goods, can be used with plastic crates to store a variety of small products, widely used in the electronics industry and small parts warehouse, can be changed by spraying powder or laying a special rubber plate to achieve anti-static function, with low cost, safe and reliable, simple assembly and disassembly, can be used alone, but also free to splice into various arrangements. The addition of a universal wheel mechanism at the foot even allows for a transfer function. The top and bottom layers of the shelves are connected to the columns with double angle codes and screws to make the shelves stable. The steel laminate is made of Japanese standard spcc cold plate bent on all sides according to the required size, with concave reinforcement welded underneath, and the welding is spot welded.
1,Shelf column(angle post roll forming machine): made by bilateral punching of equilateral angles, the holes are arranged at a distance of 50mm along a straight line, the column holes are used for hanging and connecting layer plates
2,Steel shelves(shelf panel roll forming machine): cold rolled steel sheets are bent on all sides according to the required size.
3,The columns and steel shelves are connected and fixed by fasteners and triangle type fixing pieces.
4,After each part of the shelf has been processed and shaped, all the finished products are assembled after grinding, pickling, phosphating, automatic powder electrostatic spraying and drying. The surface of the finished shelves is clean and beautiful; the shelves can be adjusted up and down at will and are easy to disassemble.
| Easy Assembling Shelf Column Steel Slotted Angle Rack Roll Forming Machine |
| Machinable thickness | 0.8-1.2mm |
| Steel type | Galvanized steel, carbon steel, cold rolled steel |
| Working speed | 0-15m/min |
| Punch type | Press machine |
| Press model | Yangli brand JH21-45 |
| Forming station | 18 forming stands |
| Forming motor power | 15kw |
| Control panel | Siemens PLC |
| Electricity | 380V 50Hz 3Ph |

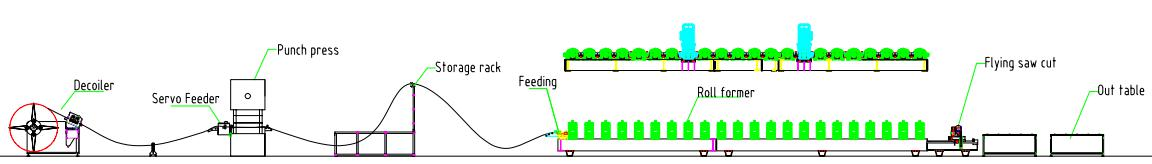

Angle post roll forming machine flow chart:
Decoiler-Servo Feeder-Punching press-Storage rack-Roll forming machine-Hydraulic cut-Out table
This folded edge type of angle column has better bearing capacity than ordinary angle column, and it is a new style in the market, which is sold at a higher price and better profit than ordinary angle. In the forming machine ordinary angle steel 10 passes forming can be, this folded edge angle steel need 18 passes forming, so even if the same process, the cost of the forming machine will be higher. Water drop hole or long strip hole depends on the market acceptance, can be used with multiple sets of punching dies to meet different customer needs. The line speed of the equipment is 15 meters per minute, if the length of the angle is 3 meters per piece, it can produce 5 pieces per minute, which is very efficient and suitable for manufacturers with high capacity.

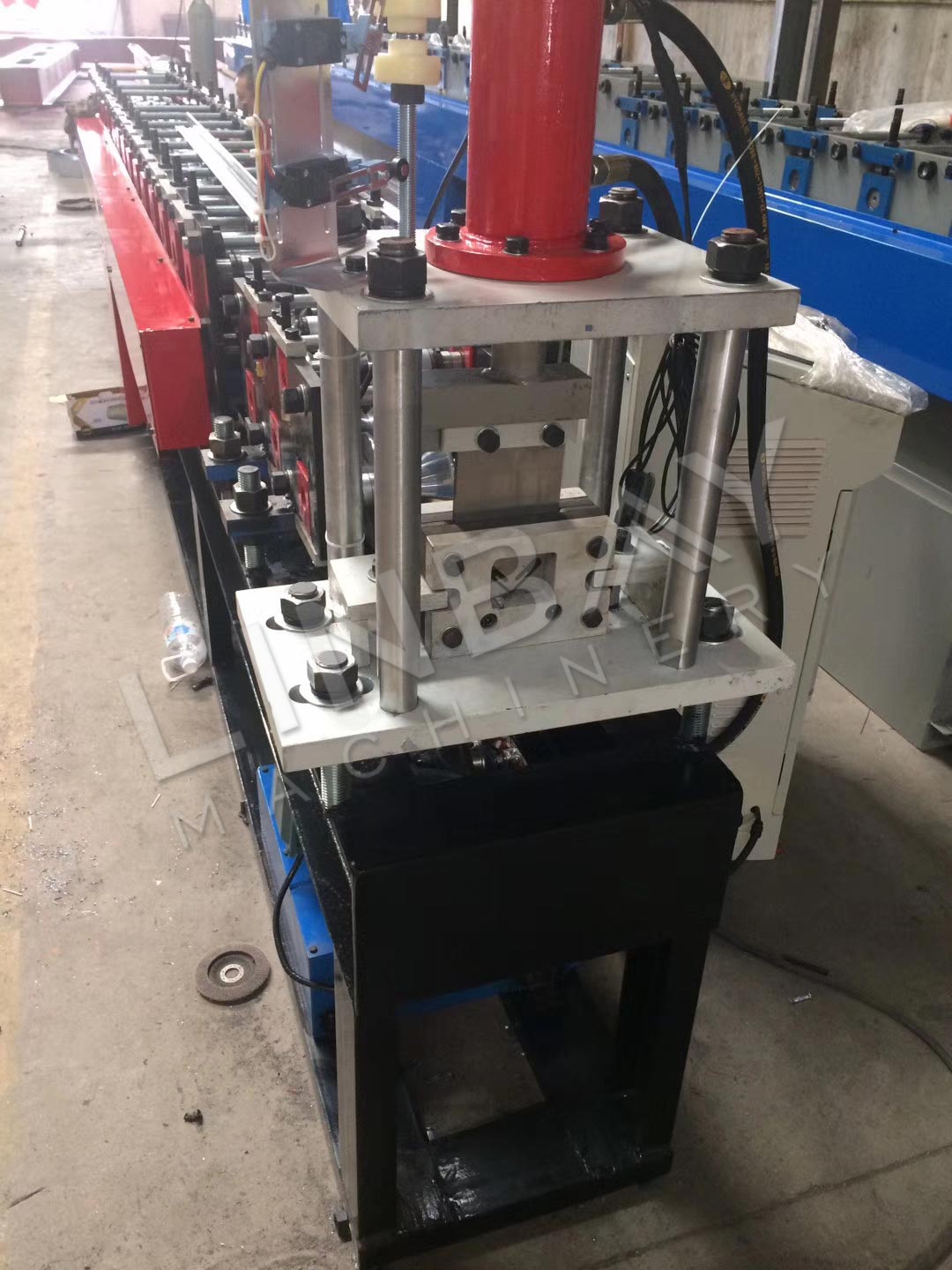

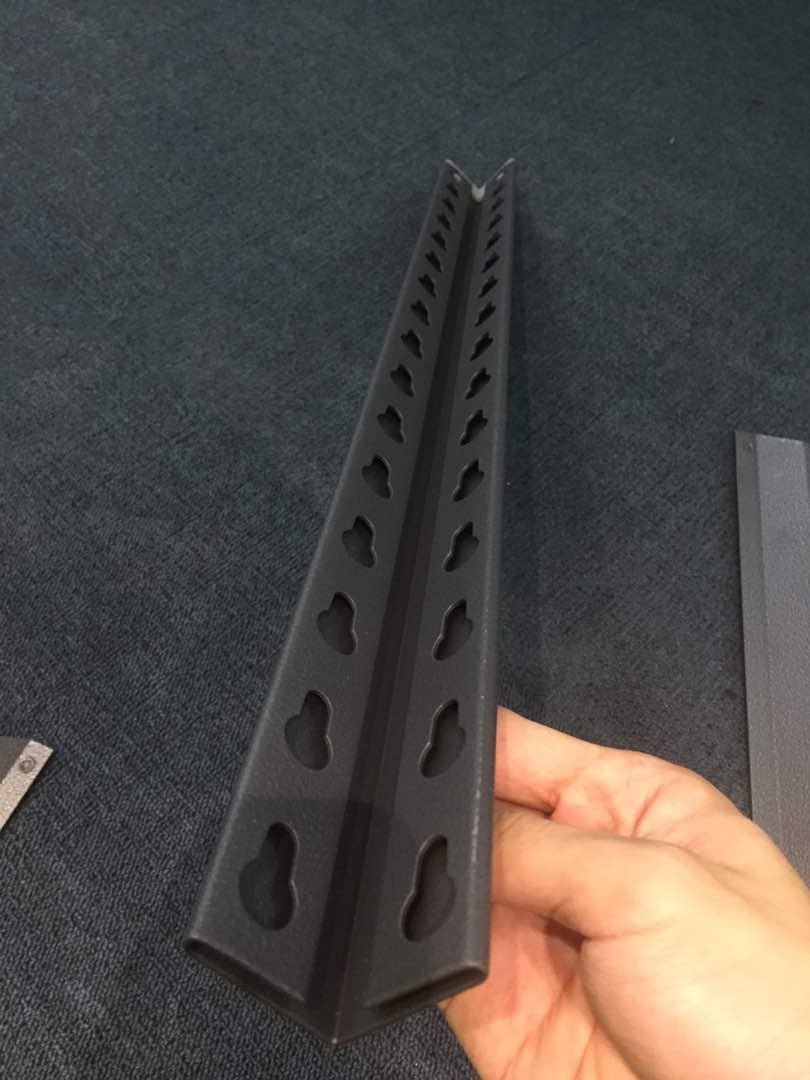

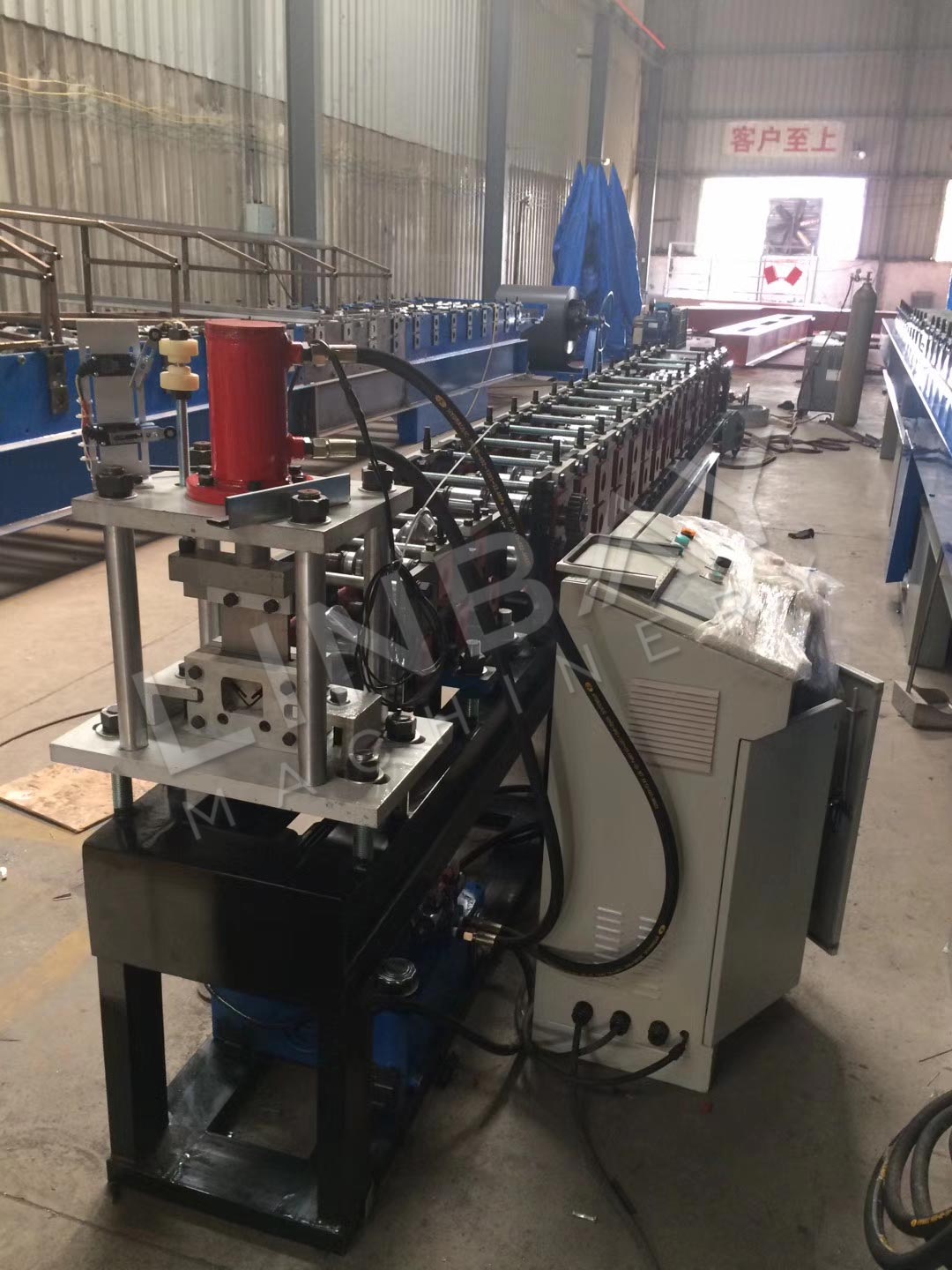

Pictures of slotted angle post roll forming machine:
