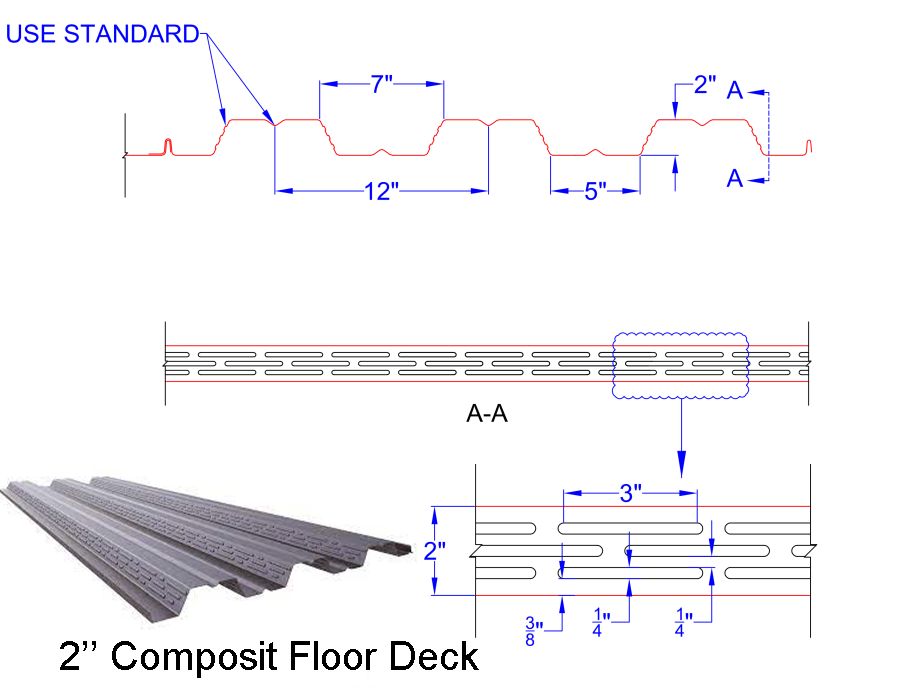

2'' Composite Floor Steel Deck Cold Bending Roll Forming Machine
Floor joists are used in place of the original formwork in multi-storey buildings. The material of floor joists also refers to the amount of galvanization and yield strength, common floor joists are Q235 and Q345. (metal deck roll forming machine/metal deck bending machine)
The main features of floor joists are: light weight, high strength, high bearing capacity, good earthquake resistance, simple and quick construction, easy assembly, replacing traditional formwork, improving the shortcomings of traditional formwork, can be used as part of the structural strength, reduce material costs, easy reinforcement, wiring, piping construction, neat and beautiful appearance. (floor decking roll forming machine/ floor decking bending machine)
The floor joists need to be reinforced, only the amount of the problem, you can consider the steel joist floor joists, it is less work, and can be designed to span in the unsupported plate span, reduce or basically do not need temporary support. (Steel deck roll forming machine/Steel deck bending machine) (roof deck roll forming machine/ roof deck bending machine)
Flow chart of 2'' Composite Floor Steel Deck Cold Bending Roll Forming Machine:
Hydraulic decoiler--Guiding--Embossing--Roll forming--Hydraulic cut--Out table
LINBAY MACHIENRY exported this METAL DECK machine to Iraq. This machine is producing common floor joist size 75mm high. The floor bearing plate production line is recommended to use hydraulic uncoiler, the general thickness of the floor bearing plate is 0.8mm or 1mm, the width of the steel coil is 1250mm or 1220mm, so the steel coil is big and heavy, so the hydraulic uncoiler is more suitable to speed up the process of replacing the steel coil and improve the efficiency of the whole production process.
2'' Composite Floor Steel Deck Cold Bending Roll Forming Machine | Plus configurations | | Item | Specification | | Machinable Material : | Type : | A) Galvanized Coil | | Thickness : | 0.8-1.5mm | | Yield strength : | ≤550 Mpa | | Working speed : | 0-20m/min | | Machine colour : | Industrial blue | | Delivery : | 120 working days | | Warranty : | 24 months | | Uncoiling : | Type : | Hydraulic uncoiling | | Capacity : | 10 tons | | Pre- forming shear : | Type : | Electric motor control | | Waste : | 0mm | | Roll forming machine : | Forming steps : | 28 | | Motor power : | 2x18.5kw | | Transmission system : | gearbox | | Support structure : | cast iron with stiffner | | Material of rollers : | #45 steel tempering quenching chrom plating | | Diameter of shafts : | φ95mm | | Hydraulic cutting system : | Type : | Tracking shear | | Cutting length : | Any length | | Length tolerance : | ≤1mm | | Auto stacker : | Type : | Automatic | | Length : | depends on the maximum length of deck | | Hydraulic station : | Motor power : | 7.5kw | | PLC Control : | Language : | English-Chinese | | Inversor : | Yaskawa*2 | | PLC : | Siemens | | Electricity : | 380V 50Hz 3Ph | |

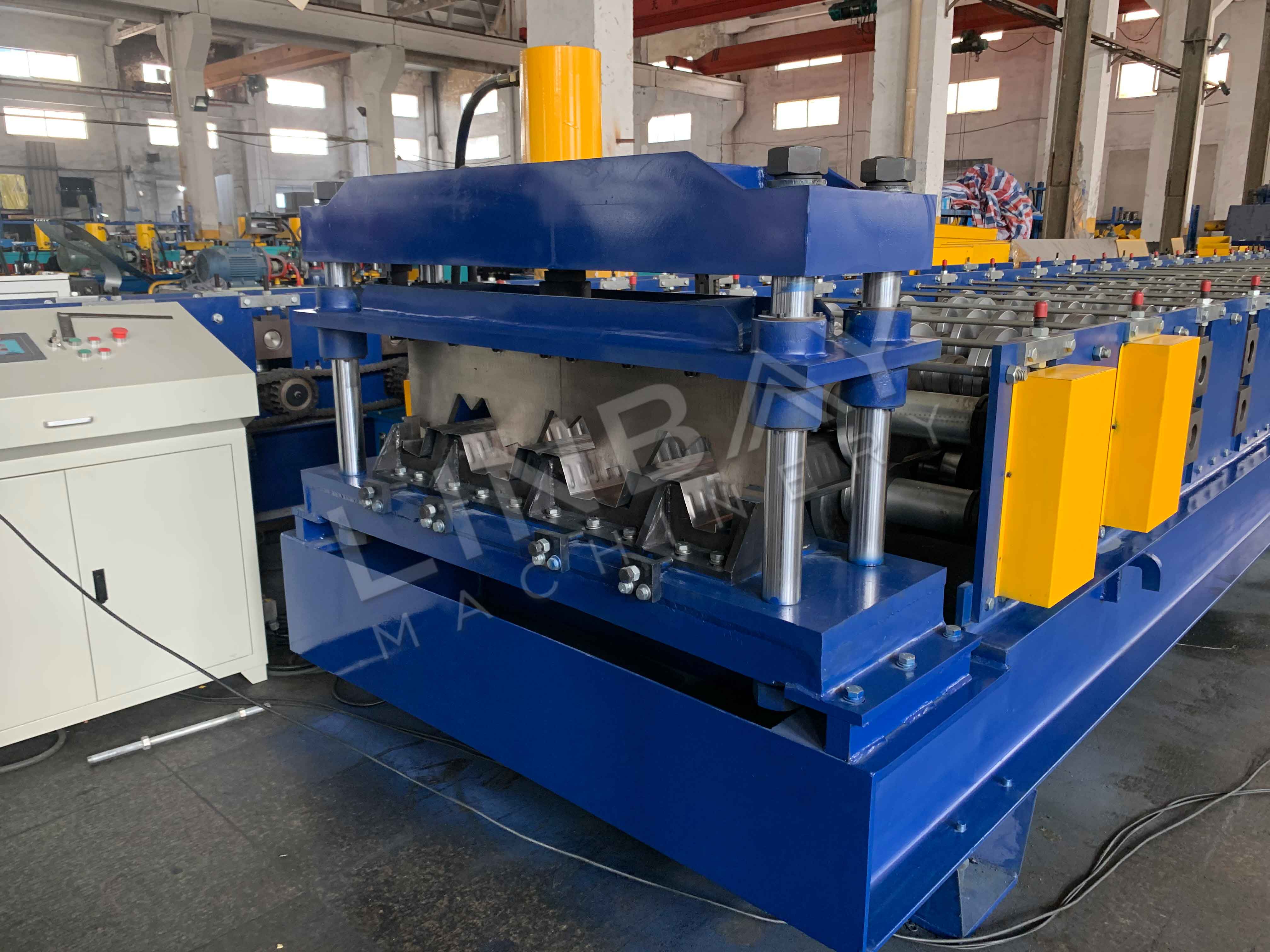

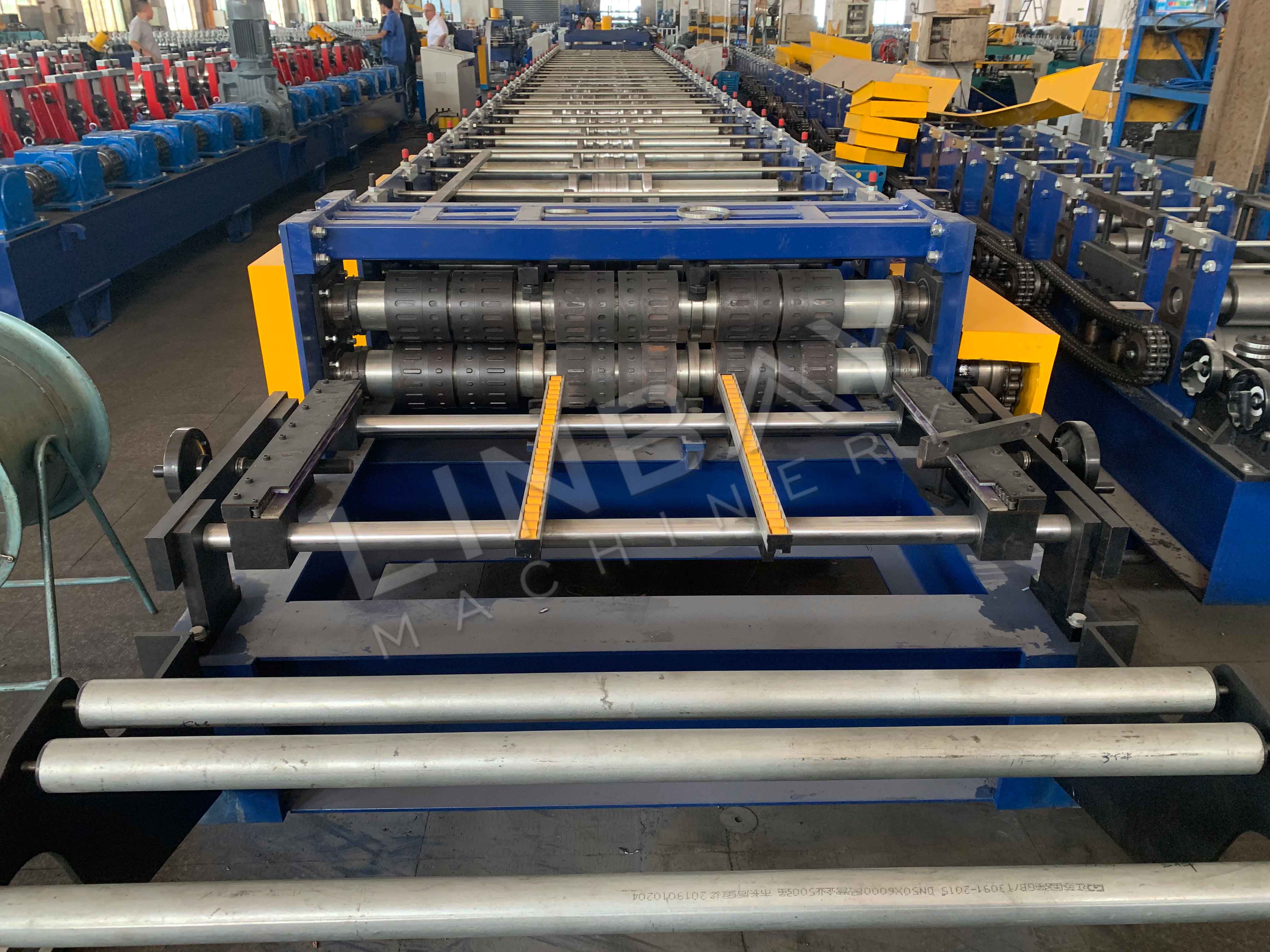

Pictures of Steel Deck 75mm Roll Forming Machine Galvanized Steel 3'' Floor Deck:
